E92 Supercharger HPT file configuration

Description

This product will configure the tune to allow SCIAP sensor to function correctly

• Configures Linear and Offset for SCIAP sensor
• Configures Smoothing factor to allow barometer to function
• Configure SCIAP P0101 Table
• Configures limit of P1101 test to .97PR
• Optional IAT2->3  Switch
• Enables DTC’s and Voltage Tests

For Truck OS

• Fix the AAP2 High voltage test, by default they are set at 60% which would be perfect if your engine is used in a plane.
• Option to put in LT1/LT4 Throttle pressure Drop table, this is helpful with Truck OS that have a CAM

This product can include necessary adjustments to correct issues seen with pedal spiking. Adjustments will include by default LT4 values.

• Throttle Rate Table Adjustment
• Pedal Progression table adjustment





This product can include population of the Baro Tables, There are 3 Baro tables that given a MAP input and RPM output the expected Post throttle/Pre Roots pressure

(2015+ vehicles have this table)

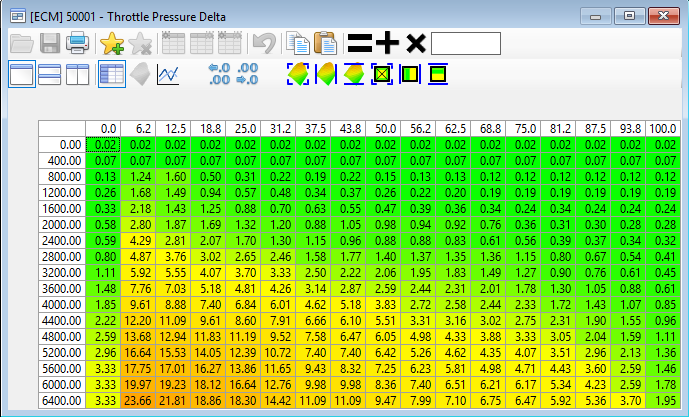

Below is the Throttle pressure Delta Table,

You can see as the throttle area goes up. the expected delta across the throttle goes down.

This table will not be included in the XDF

The XDF file for this product will include

• SCIAP sensor Linear/Offset
• Pedal Progression Table
• Throttle Rate Table

Disclaimer: Customer must have ability to utilize XDF file.

I am not a remote tuner, I will change only the values in the product description.

Customer is required to repin for SCIAP and IAT sensor.

Sometimes this product does not solve the pedal control issues.

I will try to help, but if it gets to be a tuning issue, I will divert to known remote tuners.

The value here is the SCIAP Smoothing factor  the SCIAP P0101 table and the Throttle Rate table

HP Tuner Support will add the SCIAP Linear and Offset (if requested)

VCM suite already has the DTC’s and Voltage Test switches needed
